Alfa Laval-6 Mechanical Seal for Alfa laval pump ,Replace John Crane 87 (EI/ EC) seal, Aesseal W03 seal

Short Description:


Product Detail

Product Tags



Operational Conditions

Temperature:-40℃ to +200℃
Pressure: ≤0.8MPa
Speed: ≤18m/s

Applications

Clean water,
sewage water
oil and other moderately corrosive fluids

Materials

Stationary Ring: Silicon Carbide, TC, Carbon
Rotary Ring: Silicon Carbide, SUS304, SUS316, TC
Secondary Seal: NBR, EPDM, Viton
Spring and Metal Parts: SUS304, SUS316

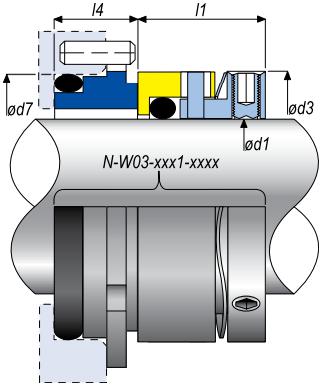

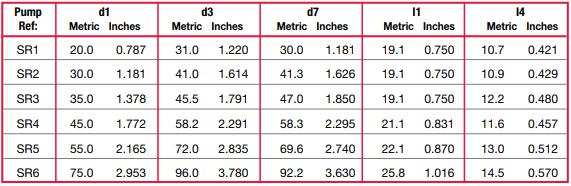

Alfa Laval-6 data sheet of dimension

scdsv svdf

About Alfa laval LKH pump

Applications
The LKH pump is a highly efficient and economical centrifugal pump, which meets the requirements of hygienic and gentle product treatment and chemical resistance. LKH is available in thirteen sizes, LKH-5.-10.-15, -20, -25.-35, -40, -45, -50.-60.-70, 85 and -90.

Standard design
The LKH pump is designed for CIP with emphasis on large internal radii and cleanable seals. The hygienic version of LKH has a stainless steel shroud for protection of the motor, and the complete unit is supported on four adjustable stainless steel legs.

Shaft seals
The LKH pump is equipped with either an external single or a flushed shaft seal. Both have stationary seal rings made from stainless steel AISI 329 with sealing surface in silicon carbide and rotating seal rings in carbon. The secondary seal of the flushed seal is a long lasting lip seal the pump may also be equipped with a double mechanical shaft seal.

Our advantages

R&D Department

we have more than 10 professional engineers, keep strong ability for mechanical seal design, manufacturing and offer seal solution

Mechanical Seal Assemble Line

Lepu seal spend lots of money to train our workers, and make sure our workers have good skill for mechanical seal.

Mechanical seal warehouse.

we keep many seals in our stock, and deliver them fast to our customers, like grundfos pump seal, flygt pump seal, burgmann seal, john crane seal, and so on.
